original capsule M8(s) Reconstruction Thiersch elektroakustik

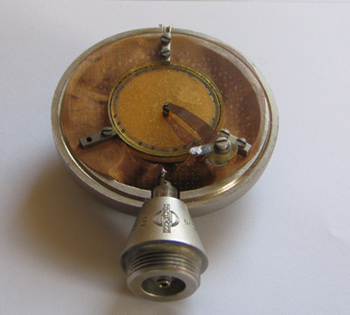

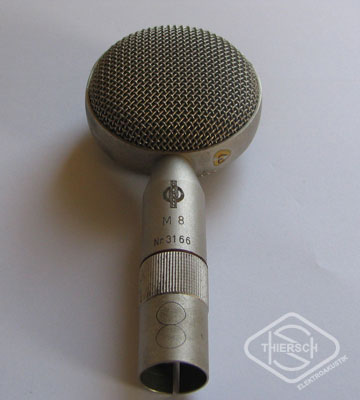

M8_old M8_old M8
  • original transducer skinned single-sided
  • dust and pollution can come between diaphragm and electrode
  • motion of diaphragm/ frequency response is affected
  • if desired, we reskinn the original transducer of capsule M8(s)

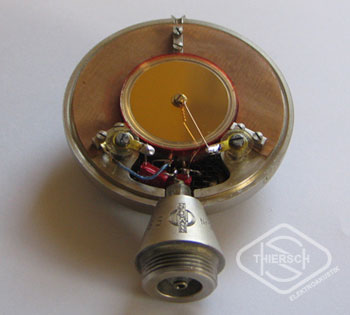

  • new transducer („STW 7.2“)
  • reskinned double-sided, according to
    famous example M7 by in-house production
  • reverse side is switchable on for figure 8
  • balanced frequency response
  • M8(s) is available in pattern figure eight but also switchable in cardioid/figure eight
  • same possiblity for M7(s) – as switchable type cardioid/omni**

    (similar circumstances like on U48*/U47**, where cardioid is more sensitive (about 6dB) than figure eight*/omni**)

  • visual optical characteristic remains unchanged (inward construction will be adapted)
  • available as red or blue line

All the three directional characteristics are convertible via preamp CMV 563 by our reconstruct capsules M7/M8. Note: [Microphones U47 and U48 are identical with the exception of their directional characteristics (U47: omni and cardioid; U48 figure eight and cardioid), they are adjustable by switch on microphone head.]
from „Betriebsanweisung für Neumann-Kondensatormikrophone U47/48 und Zubehör“
